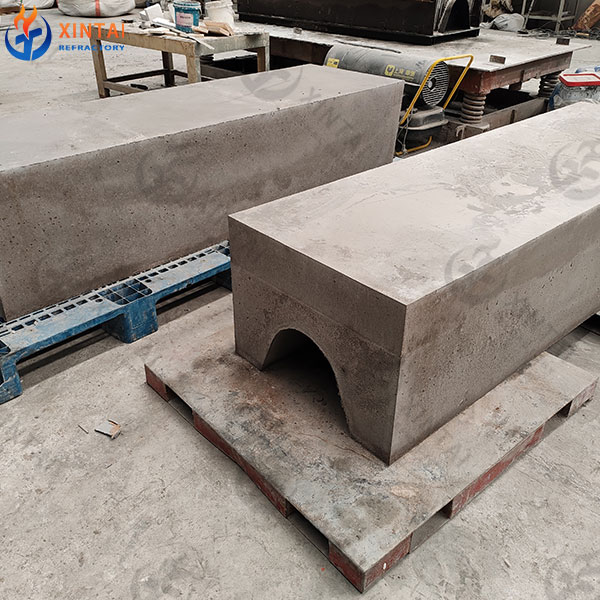

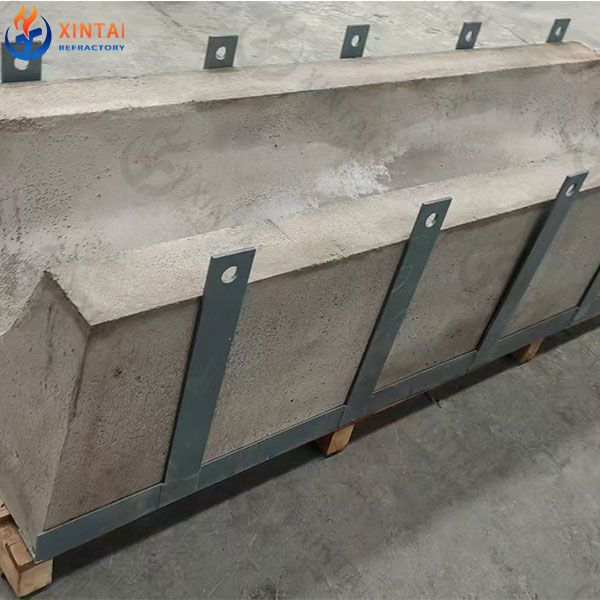

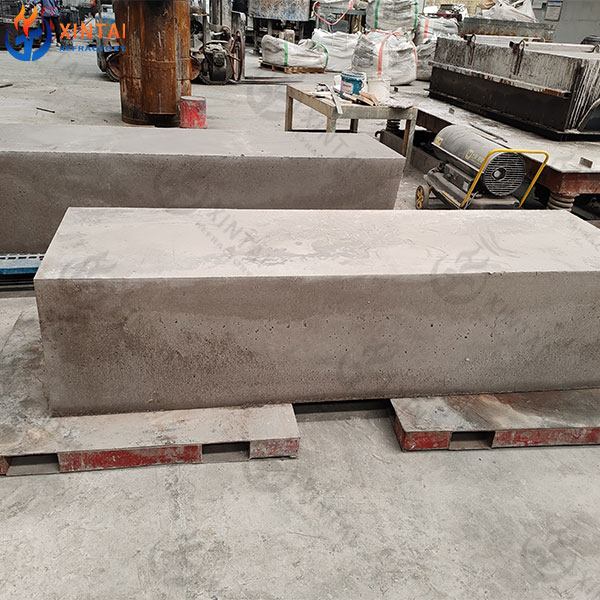

Refractory Tapping Spout for EAF is a high-performance precast refractory component specially designed for the tapping area of electric arc furnaces (EAF). It is installed at the furnace tapping outlet to guide molten steel flow during the steelmaking process while protecting the furnace structure from severe thermal and chemical damage.
Manufactured using high-quality high alumina refractory materials, alumina-magnesia compositions, or customized refractory castables, the EAF tapping spout provides excellent resistance to molten steel erosion, slag corrosion, thermal shock, and mechanical impact.
During electric arc furnace tapping operations, the refractory tapping spout is exposed to extremely high temperatures, rapid temperature fluctuations, and continuous contact with molten steel and slag. Xintai’s EAF refractory tapping spouts are developed with optimized material formulations and precision manufacturing technology to ensure stable steel flow, reduced refractory consumption, and extended service life.
As a professional refractory manufacturer, Xintai provides custom refractory tapping spouts for EAF furnaces according to furnace capacity, tapping angle, installation position, and operating conditions, helping steel plants improve production efficiency and reduce maintenance costs.
Physicochemical Parameters of Custom Refractory Tapping Spout for EAF
| Property | Typical Value | Unit |
|---|---|---|
| Material Composition | High Alumina, Alumina-Magnesia, or Custom Formulation | – |
| Al₂O₃ Content | ≥60 – 95 | % |
| Fe₂O₃ Content | ≤1.5 | % |
| Maximum Service Temperature | Up to 1800 | °C |
| Bulk Density | 2.3 – 2.9 | g/cm³ |
| Cold Crushing Strength | 30 – 65 | MPa |
| Thermal Conductivity | 1.4 – 2.2 | W/m·K |
| Thermal Shock Resistance | Excellent | – |
| Slag Resistance | High | – |
Product Features
- Excellent High Temperature Resistance: The EAF tapping spout refractory is designed to withstand continuous exposure to extreme temperatures during steel tapping. High alumina content and optimized refractory structure maintain excellent stability under high-temperature conditions.
- Superior Thermal Shock Resistance: Electric arc furnace tapping involves frequent heating and cooling cycles. The specially formulated refractory material provides excellent resistance against thermal shock, cracking, and spalling.
- Strong Molten Steel and Slag Corrosion Resistance: The dense refractory structure effectively reduces penetration from molten steel and aggressive slag, improving the durability of the tapping channel and reducing replacement frequency.
- High Mechanical Strength: With high cold crushing strength and wear resistance, the refractory tapping spout for steel furnace can withstand mechanical impact, vibration, and continuous operation in harsh steelmaking environments.
- Customized Design and Manufacturing: Each custom EAF refractory tapping spout is manufactured according to customer drawings, furnace specifications, tapping hole dimensions, and installation requirements to ensure accurate fitting.
- Extended Service Life: Optimized raw materials, advanced production technology, and strict quality control help improve refractory performance and reduce furnace downtime.
Applications
Refractory Tapping Spout for EAF is widely used in:
- Electric arc furnace steelmaking systems
- EAF tapping outlets and steel flow channels
- Carbon steel production furnaces
Stainless steel melting furnaces - Alloy steel manufacturing lines
Special steel production equipment - Molten steel transfer systems
- Metallurgical furnace refractory linings
Customization Services
- Customized Dimensions: Refractory Tapping Spout for EAF can be produced according to customer drawings, furnace capacity, and installation requirements.
- Material Optimization: Different refractory formulations can be developed based on operating temperature, slag composition, tapping frequency, and service conditions.
- Special Shape Manufacturing: Custom-designed shapes, angles, openings, and connection structures are available to match different electric arc furnace configurations.
- Performance Enhancement: Thermal conductivity, mechanical strength, abrasion resistance, and corrosion resistance can be adjusted for specific applications.
Packing and Shipping Details

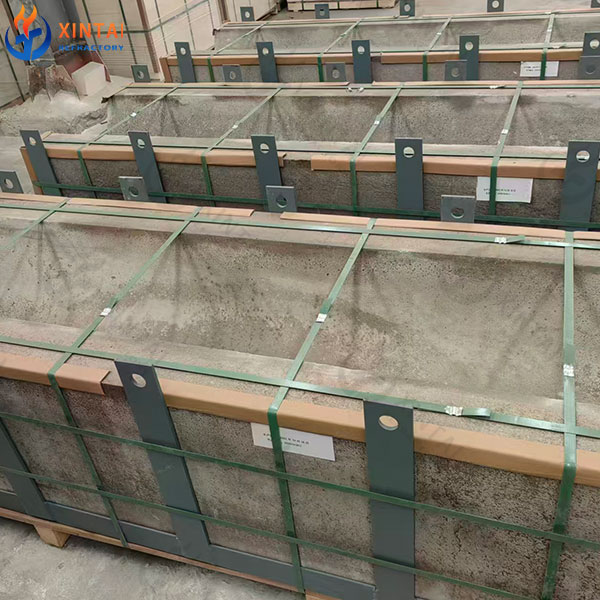

- Packaging: Strong wooden cases with protective materials to prevent damage during transportation
- Shipping Method: Sea freight, land transportation, or customized logistics solutions
- Production Time: Normally 20–35 working days depending on order quantity and customization requirements
About Xintai Refractory
With more than 20 years of experience, Xintai Refractory specializes in manufacturing high-performance refractory products for steelmaking, cement, glass, non-ferrous metals, and other high-temperature industries.
Our products include refractory bricks, precast refractory shapes, refractory castables, furnace lining materials, and customized refractory components. Through advanced manufacturing technology and strict quality control, we provide durable refractory solutions that help customers improve furnace efficiency, reduce maintenance costs, and extend equipment service life.
For high-quality Refractory Tapping Spout for EAF, contact Xintai Refractory for customized solutions, technical support, and quotation.
