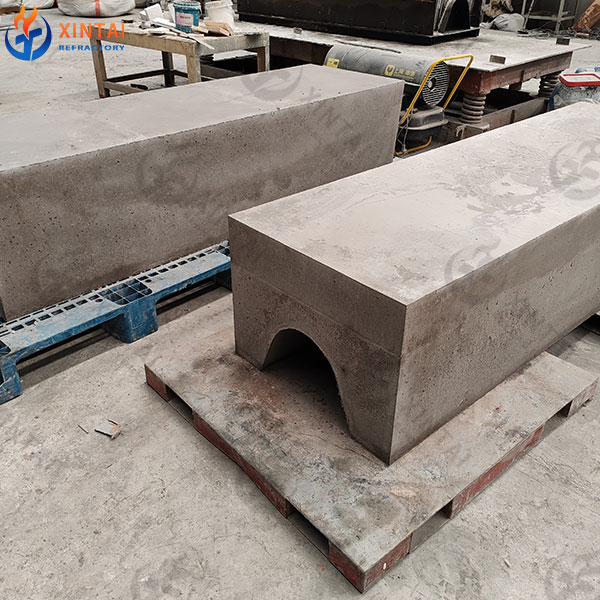

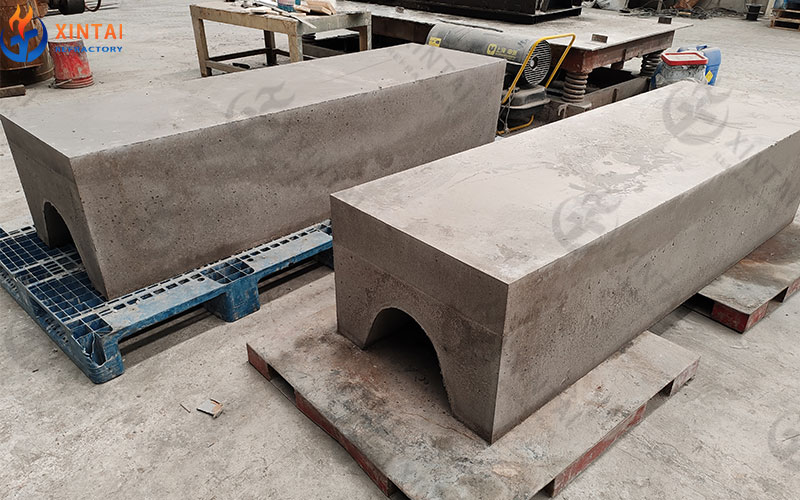

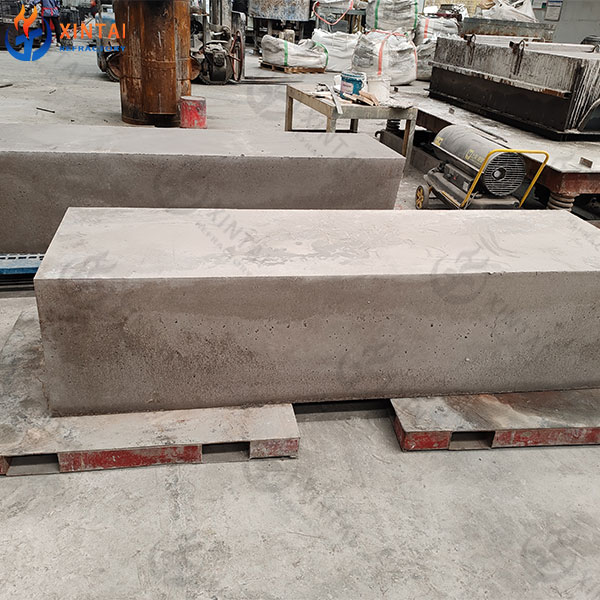

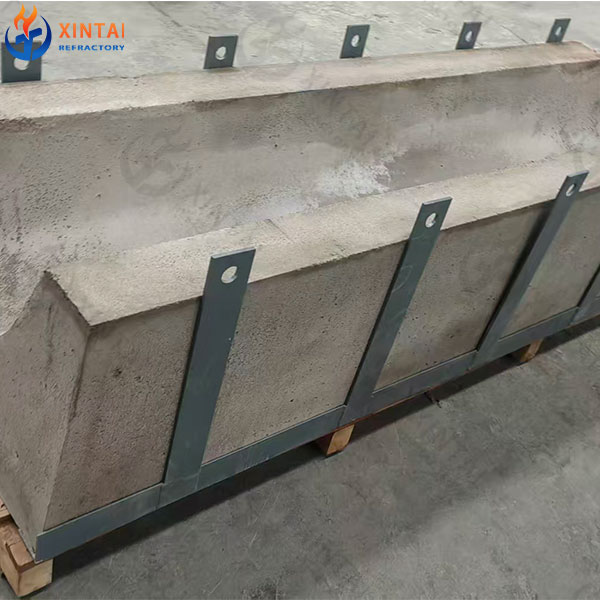

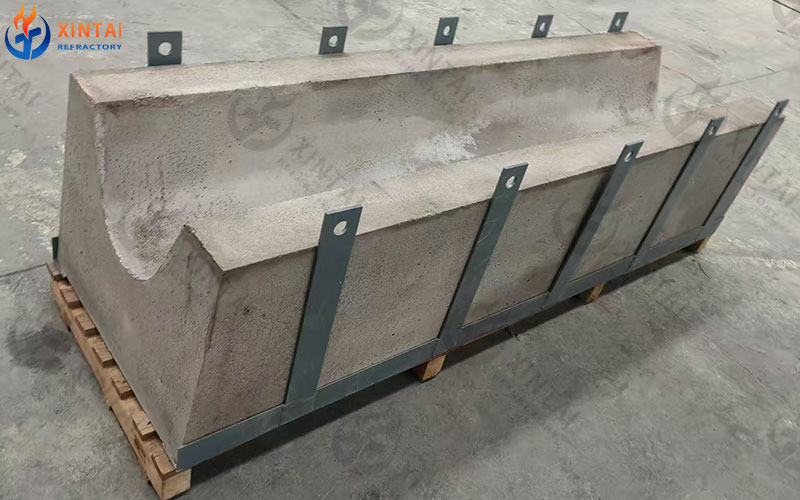

Electric Arc Furnace Tapping Spouts are high-performance precast refractory components specially designed for the tapping area of electric arc furnaces. Manufactured from high-quality alumina, alumina-magnesia, or specially formulated refractory materials, these spouts provide excellent resistance against molten steel erosion, slag corrosion, thermal shock, and mechanical impact.
During the tapping process, the refractory spout is exposed to severe thermal cycling and continuous contact with high-temperature molten metal and slag. Xintai’s Electric Arc Furnace Tapping Spouts are engineered with optimized material formulations and precise dimensions to ensure smooth steel flow, reduce refractory wear, and extend furnace operating life.
With factory-controlled production and customized designs, these precast refractory shapes help steel plants minimize maintenance frequency, improve tapping efficiency, and reduce production downtime.
Physicochemical Parameters of Custom Kiln Burner Refractory Blocks
| Property | Typical Value | Unit |
|---|---|---|
| Material Composition | High Alumina, Alumina-Magnesia, or Custom Formulation | – |
| Al₂O₃ Content | ≥60 – 95 | % |
| Fe₂O₃ Content | ≤1.5 | % |
| Maximum Service Temperature | Up to 1800 | °C |
| Bulk Density | 2.3 – 2.9 | g/cm³ |
| Cold Crushing Strength | 30 – 65 | MPa |
| Thermal Conductivity | 1.4 – 2.2 | W/m·K |
| Thermal Shock Resistance | Excellent | – |
| Slag Resistance | High | – |
Product Features
- High Temperature Resistance: Electric Arc Furnace Tapping Spouts are designed to withstand extreme temperatures during steel tapping operations, maintaining structural stability under continuous thermal stress.
- Excellent Thermal Shock Resistance: Advanced refractory formulations help prevent cracking and spalling caused by rapid temperature changes during furnace operation.
- Strong Erosion and Corrosion Resistance: The dense refractory structure provides excellent resistance against molten steel erosion, slag penetration, and chemical attack.
- High Mechanical Strength: Superior cold crushing strength ensures reliable performance under mechanical impact and heavy operating conditions.
- Precision Custom Design: Each tapping spout is manufactured according to furnace drawings, tapping angles, dimensions, and installation requirements for accurate fitting.
- Extended Service Life: Optimized material selection and controlled manufacturing processes reduce wear rate and improve refractory lining durability.
Applications
Electric Arc Furnace Tapping Spouts are widely used in:
- Electric arc furnace steelmaking systems
- Steel tapping channels and pouring areas
- Alloy steel production furnaces
- Stainless steel melting furnaces
- Special steel production lines
- Metallurgical heat treatment equipment
- Ladle and molten metal transfer systems
Customization Services
- Customized Dimensions: Tapping spouts can be produced according to customer drawings, furnace capacity, and installation requirements.
- Material Optimization: Different refractory formulations can be developed based on operating temperature, slag composition, tapping frequency, and service conditions.
- Special Shape Manufacturing: Custom-designed shapes, angles, openings, and connection structures are available to match different electric arc furnace configurations.
- Performance Enhancement: Thermal conductivity, mechanical strength, abrasion resistance, and corrosion resistance can be adjusted for specific applications.
Packing and Shipping Details

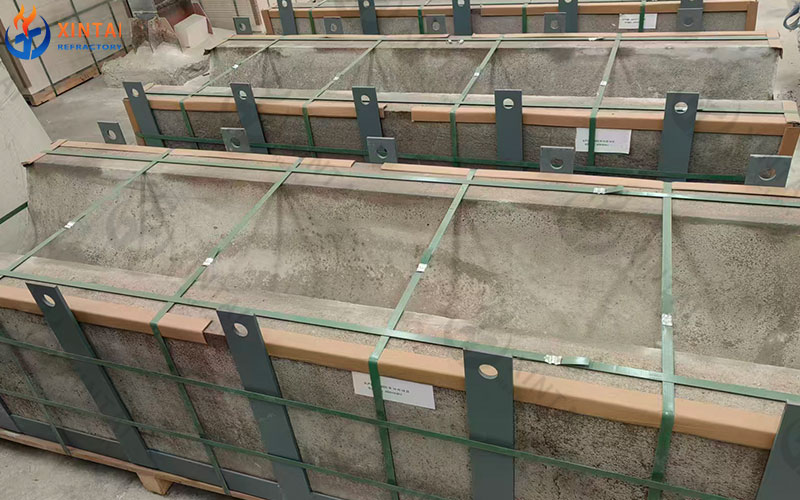

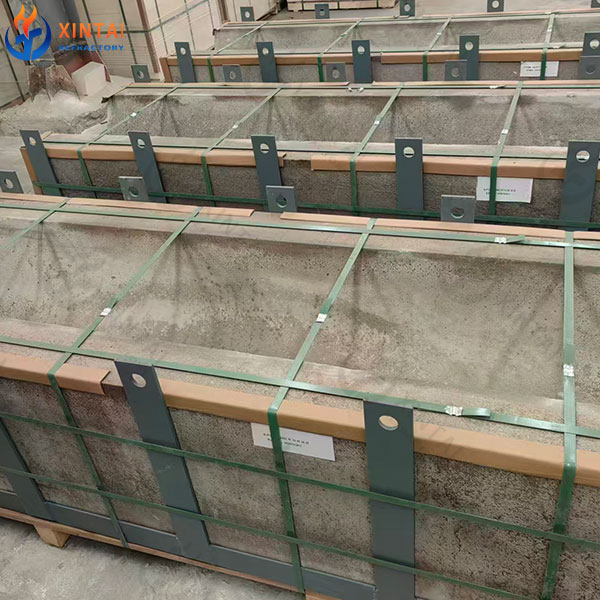

- Secure Packaging: Strong wooden crates with protective cushioning.
- Global Delivery: Safe shipping by sea or land freight.
- Lead Time: Typically 20–35 working days depending on order and customization.
About Xintai Refractory
With over 20 years of experience, Xintai Refractory provides high-quality, durable, and energy-efficient refractory solutions for industries including steel, cement, non-ferrous metals, glass, ceramics, and chemical processing. Our custom kiln burner bricks enhance operational efficiency, reduce maintenance costs, and extend the service life of industrial kilns and furnaces.
Contact Xintai Refractory today for a customized quote, consultation, or sample order.
