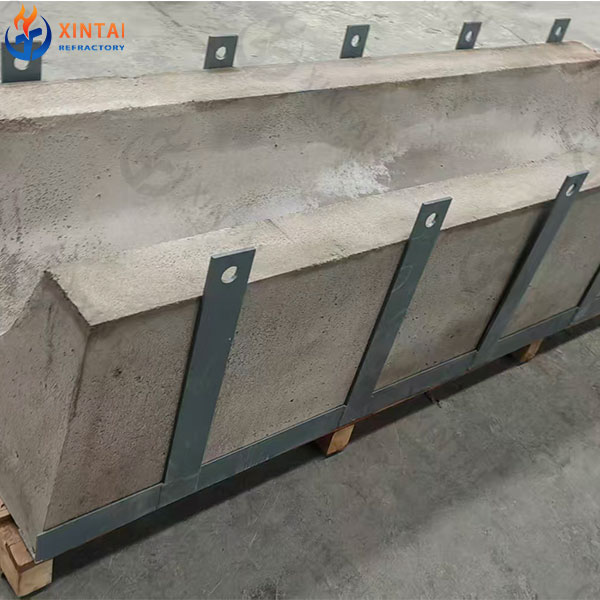

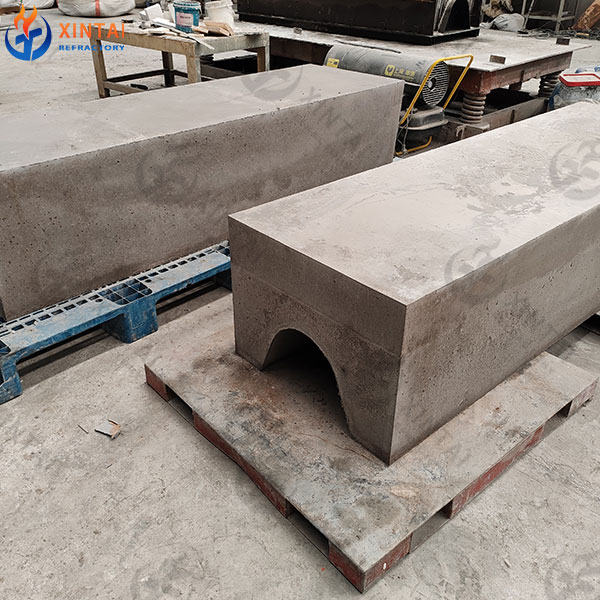

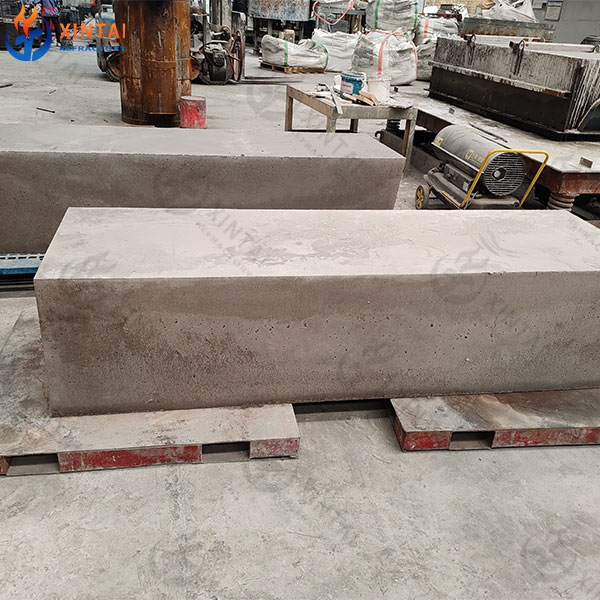

Custom Tapping Spout Refractory for EAF Furnace is a tailor-made precast refractory solution designed specifically for electric arc furnace (EAF) steelmaking systems. Every tapping spout is manufactured according to customer drawings, furnace configurations, tapping angles, and production requirements to ensure precise installation and optimum molten steel flow.
Unlike standard refractory products, custom tapping spouts are engineered to match the unique operating conditions of each steel plant. Xintai develops the most suitable refractory formulation based on furnace temperature, slag chemistry, tapping frequency, steel grade, and expected service life.
Manufactured from premium high alumina, alumina-magnesia, or specially formulated refractory materials, our custom refractory tapping spouts offer excellent resistance to thermal shock, slag corrosion, molten steel erosion, and mechanical impact.
With advanced production technology and strict dimensional control, every precast refractory component provides reliable performance, minimizes maintenance frequency, and helps reduce overall operating costs.
Physicochemical Parameters of Tapping Spout Refractory for EAF Furnace
| Property | Typical Value | Unit |
|---|---|---|
| Material Composition | High Alumina, Alumina-Magnesia, or Custom Formulation | – |
| Al₂O₃ Content | ≥60 – 95 | % |
| Fe₂O₃ Content | ≤1.5 | % |
| Maximum Service Temperature | Up to 1800 | °C |
| Bulk Density | 2.3 – 2.9 | g/cm³ |
| Cold Crushing Strength | 30 – 65 | MPa |
| Thermal Conductivity | 1.4 – 2.2 | W/m·K |
| Thermal Shock Resistance | Excellent | – |
| Slag Resistance | High | – |
Product Features
- Fully Customized Design: Each custom tapping spout refractory for EAF furnace is produced according to customer drawings, installation dimensions, furnace capacity, and tapping system requirements, ensuring perfect compatibility.
- Optimized Material Formulation: Different refractory compositions are available to match varying steel grades, slag conditions, and operating temperatures for maximum service life.
- Outstanding Thermal Shock Resistance: Rapid heating and cooling during tapping can cause conventional refractories to crack. Our optimized formulations provide excellent resistance to thermal cycling.
- Excellent Molten Steel and Slag Resistance: The dense microstructure effectively resists slag penetration and molten steel erosion, maintaining stable performance under continuous operation.
- High Mechanical Strength: Superior compressive strength and abrasion resistance enable the refractory tapping spout to withstand mechanical impact during installation and operation.
- Longer Service Life: Premium raw materials combined with precision manufacturing significantly reduce refractory wear and replacement frequency, lowering maintenance costs.
Applications
Our custom EAF tapping spout refractories are widely used in:
- Electric Arc Furnace (EAF)
- Carbon steel production
- Stainless steel plants
- Alloy steel manufacturing
- Special steel furnaces
- Steel tapping channels
- Molten steel transfer systems
- Metallurgical refractory equipment
Customization Services
- Customized Dimensions: Refractory Tapping Spout for EAF can be produced according to customer drawings, furnace capacity, and installation requirements.
- Material Optimization: Different refractory formulations can be developed based on operating temperature, slag composition, tapping frequency, and service conditions.
- Special Shape Manufacturing: Custom-designed shapes, angles, openings, and connection structures are available to match different electric arc furnace configurations.
- Performance Enhancement: Thermal conductivity, mechanical strength, abrasion resistance, and corrosion resistance can be adjusted for specific applications.
Packing and Shipping Details

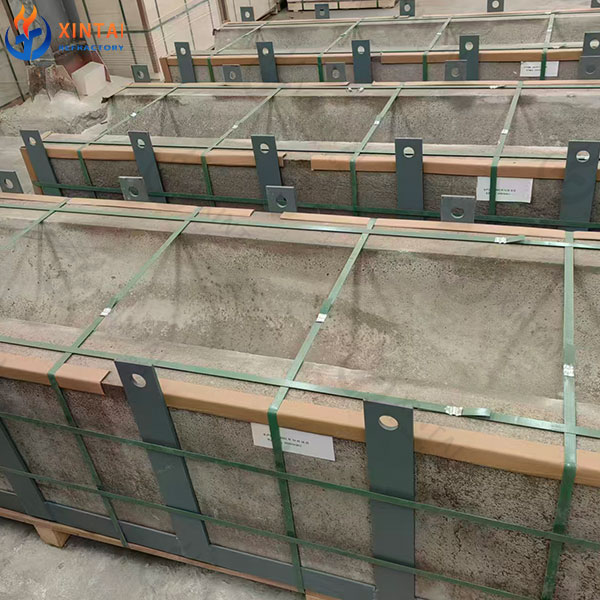

- Packaging: Strong wooden cases with protective materials to prevent damage during transportation
- Shipping Method: Sea freight, land transportation, or customized logistics solutions
- Production Time: Normally 20–35 working days depending on order quantity and customization requirements
About Xintai Refractory
Xintai Refractory is a professional manufacturer of custom refractory products for steelmaking, cement, glass, petrochemical, and other high-temperature industries.
We specialize in manufacturing precast refractory shapes, refractory bricks, refractory castables, kiln burner blocks, EAF refractory components, and customized refractory solutions. Our experienced engineering team works closely with customers to develop high-performance refractory products that improve furnace efficiency, extend service life, and reduce operating costs.
Whether you need a single prototype or large-scale OEM production, Xintai can provide a reliable refractory solution tailored to your application.
