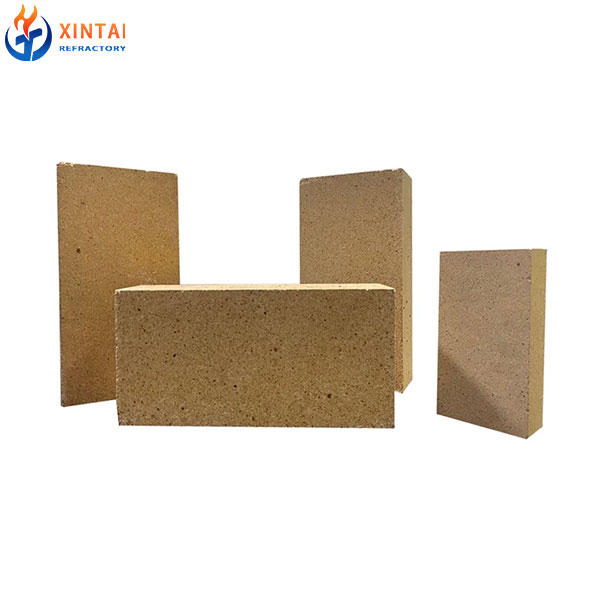

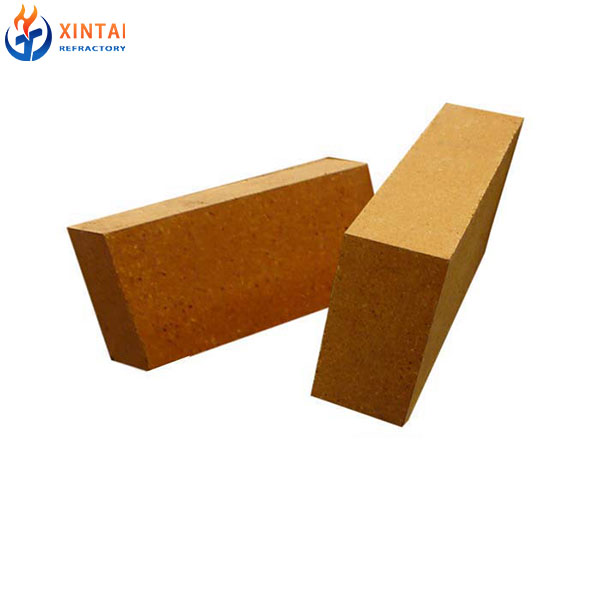

Industrial Furnaces Fire Clay Bricks are high-performance refractory materials engineered for a wide range of industrial heating systems operating under extreme thermal, mechanical, and chemical stress. Manufactured from premium-grade bauxite clinker, andalusite, and fused mullite, these bricks are produced through precise particle grading and high-temperature sintering to ensure excellent structural stability and long service life.
Designed for general industrial furnace applications, they provide reliable performance in environments requiring continuous high-temperature operation, load-bearing capability, and resistance to thermal shock and slag corrosion.
Physicochemical Parameters
| Item | Industrial Furnaces Fire Clay Brick |
|---|---|
| Al₂O₃, % | 42–53 |
| Fe₂O₃, % ≤ | 1.6 |
| CaO + MgO, % ≤ | 0.7 |
| Na₂O + K₂O, % ≤ | 0.8 |
| Bulk Density, g/cm³ ≥ | 2.20 |
| Apparent Porosity, % ≤ | 17 |
| Cold Crushing Strength, MPa ≥ | 40 |
| 0.2 MPa Refractoriness Under Load, °C ≥ | 1450 |
| High Temperature Creep Rate (1280°C×25h, 0.2MPa), % ≤ | 0.4 |
| Modulus of Rupture at 1200°C, MPa ≥ | 10 |
| Modulus of Rupture at 1350°C, MPa ≥ | 4 |
| Thermal Expansion Coefficient (20–1000°C), % | 0.7 |
| Standard | GB/T 3995, GB/T 2997 |
Product Features of Industrial Furnaces Fire Clay Bricks
- High Load Stability at Elevated Temperatures: Maintains structural integrity under continuous high-temperature and mechanical stress, ensuring stable furnace operation.
- Excellent Creep Resistance: Low deformation rate under load significantly improves dimensional stability during long-term service.
- Dense Microstructure: Controlled porosity below 17% reduces slag penetration and enhances chemical corrosion resistance.
- Superior Thermal Shock Resistance: Optimized grain distribution allows the bricks to withstand rapid temperature fluctuations without cracking.
- High Mechanical Strength: Cold crushing strength ≥40 MPa provides strong resistance against impact and structural stress.
- Extended Service Life: Reduces furnace downtime and maintenance costs by improving overall campaign life.
Applications
- Hot Blast Stoves: Widely used in Furnace body lining,regenerator chambers, high-temperature load-bearing zones for blast furnaces.
- Blast Furnaces: Suitable for regenerator chambers and areas requiring excellent dimensional stability under continuous high-temperature operation.
- Glass Furnaces: Used in regenerators and partition walls where long-term thermal stability is essential.
- Coke Ovens: Provides reliable resistance to thermal stress and high-temperature creep, ensuring stable operation.
- Cement and Lime Kilns: Suitable for zones subjected to continuous heating and mechanical loads.
- Other Industrial Furnaces: Applicable to metallurgical, petrochemical, power generation, ceramics, and silicate industries.
Customization Services
To meet diverse industrial furnace design requirements, we offer flexible customization:
- Dimensions: Standard and non-standard sizes available

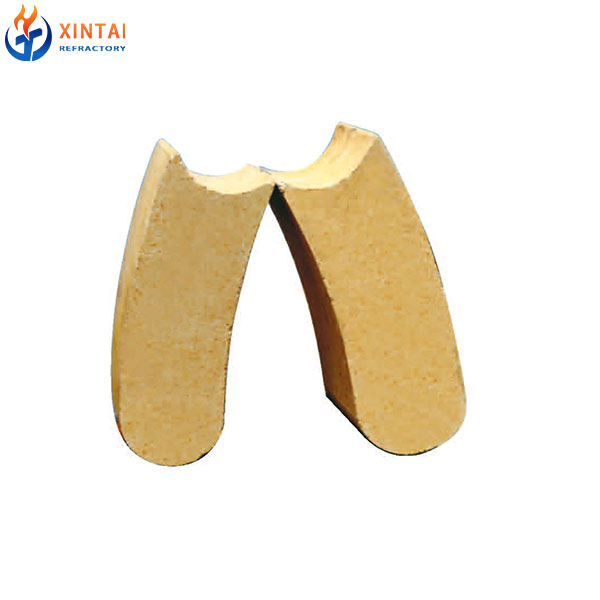

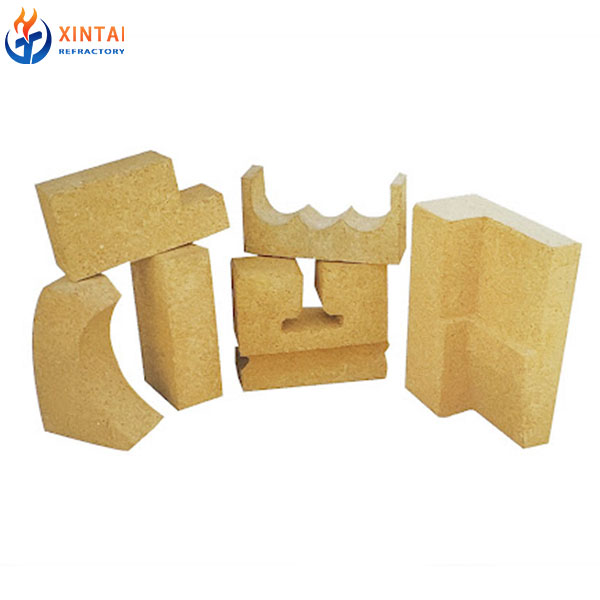

- Shapes: Straight bricks, arch bricks, wedge bricks, checker bricks
- Performance Tuning: Adjustable alumina content and density
- OEM Service: Branding and packaging customization available
Packing and Shipping Details
All Industrial Furnaces Fire Clay Bricks are packaged to ensure safety during global transportation:
- Packing Method: Wooden pallets with steel straps and moisture-proof film
- Protection: Anti-collision and moisture-resistant packaging system
- Minimum Order Quantity: 20 tons
- Lead Time: 15–40 days depending on order size and customization
- Shipping Options: Sea freight, air freight, or land transport
