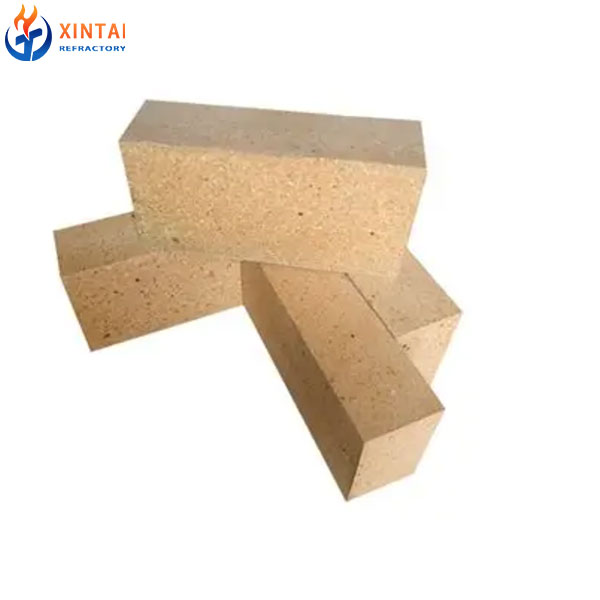

Dense Fire Clay Bricks for Industrial Kilns are high-performance refractory materials engineered for demanding high-temperature industrial environments. Manufactured from carefully selected bauxite, andalusite, and fused mullite raw materials, these refractory bricks are produced through optimized particle grading, high-pressure forming, and high-temperature sintering processes.
The result is a dense microstructure with low porosity, excellent mechanical strength, and outstanding resistance to thermal stress and chemical attack. These properties make the product highly suitable for continuous operation in industrial kiln systems where stability, durability, and safety are critical.
Designed for medium-to-high temperature furnace applications, Dense Fire Clay Bricks deliver reliable performance under both mechanical load and aggressive thermal cycling conditions.
Physicochemical Parameters
| Item | Dense Fire Clay Brick |
|---|---|
| Al₂O₃, % | 28–40 |
| Fe₂O₃, % ≤ | 1.6 |
| CaO + MgO, % ≤ | 0.7 |
| Na₂O + K₂O, % ≤ | 0.8 |
| Bulk Density, g/cm³ ≥ | 2.20 |
| Apparent Porosity, % ≤ | 17 |
| Cold Crushing Strength, MPa ≥ | 40 |
| Refractoriness Under Load (0.2MPa), °C ≥ | 1450 |
| High Temperature Creep Rate (1280°C×25h, 0.2MPa), % ≤ | 0.4 |
| Modulus of Rupture at 1200°C, MPa ≥ | 10 |
| Modulus of Rupture at 1350°C, MPa ≥ | 4 |
| Thermal Expansion Coefficient (20–1000°C), % | 0.7 |
| Standard | GB/T 3995, GB/T 2997 |
Product Features of Dense Fire Clay Bricks
- High Load-Bearing Stability: Maintains structural integrity under long-term high-temperature and mechanical load conditions, ensuring stable kiln operation.
- Excellent Creep Resistance: Low deformation under sustained load significantly improves dimensional stability and extends service life.
- Dense Microstructure Design: Controlled porosity reduces slag penetration and enhances resistance to chemical corrosion and gas erosion.
- Superior Thermal Shock Resistance: Optimized grain structure minimizes internal stress during rapid heating and cooling cycles, preventing cracking.
- High Mechanical Strength: Cold crushing strength ≥40 MPa provides strong resistance against mechanical impact and structural stress.
- Extended Service Life: Reduces maintenance frequency and furnace downtime, improving overall operational efficiency.
Applications
- Industrial Kilns: Widely used in kiln linings requiring continuous high-temperature operation and structural stability.
- Hot Blast Stoves: Applied in regenerator chambers and high-temperature load-bearing zones.
- Blast Furnace Systems: Suitable for furnace linings requiring excellent thermal stability and slag resistance.
- Glass Furnaces: Used in regenerators and partition walls where long-term thermal performance is essential.
- Coke Ovens: Provides resistance to thermal stress and chemical corrosion in high-temperature cycling environments.
- Cement and Lime Kilns: Ideal for high-load, high-temperature zones with continuous operation.
- Other Industrial Equipment: Applicable in metallurgy, petrochemical, ceramics, power generation, and silicate industries.
Customization Services
To meet diverse kiln engineering requirements, we provide flexible customization options:
- Dimensions: Standard and non-standard brick sizes
- Shapes: Straight bricks, arch bricks, wedge bricks, checker bricks
- Performance Adjustment: Tailored Al₂O₃ content and density grades
- OEM Service: Private labeling and customized packaging solutions
Packing and Shipping Details
All Dense Fire Clay Bricks are securely packaged for international transportation:
- Packing Method: Wooden pallets reinforced with steel straps and moisture-proof film
- Protection System: Anti-impact and moisture-resistant packaging design
- Minimum Order Quantity: 20 tons
- Lead Time: 15–40 days depending on order volume and customization requirements
- Shipping Options: Sea freight, air freight, and land transportation
